Preview

The R1 can be configured into two layouts as standard. Each Layout Is built around a highly Desirable use-case and provides unmatched hardware support and reliability.

Layout 1

This Layout Focuses on the Best Air Cooling Support but Also to Be the Simplest and Most Cost Effective Option. This Solution Is Perfect for Those Who Want the Simplest Customer Experience but by No Means Little Power.

Motherboard Support

• MINI ITX
• MINI DTX

cpu cooler compatibility

• 135mm max height

gpu compatibility

• 3.5 Slot (Max Thickness)
• 330mm (Max Length)

psu compatibility

• ATX
• SFX
• SFX-L

Drive Compatibility

• 4 SSD/2 HDD With SFX PSU
• 2 SSD/1HDD With ATX/SFX-L PSU

• 12 SSD/6HDD (Max) Extra With Brackets.
• 4 SSD/2HDD Extra per Additional Bracket.
• +1 Bracket If CPU Cooler Height <= 80mm
• +1 Bracket If CPU Length <= 280mm
• +2 Brackets With No Changes.

Radiator And Fan Compatibility

Side
• 75mm For ( Radiator + Fans )
• 60mm Radiator + 15mm Fans
• 50mm Radiator+ 25mm Fans
• 45mm Radiator+ 30mm Fans
‍
Top
• 2 x 25mm Top Mounted Fans (1.5 Slot GPU Max)
• 2 x 15mm Top Mounted Fans (2 Slot GPU Max)
• 0 Top Mounted Fans (3 Slot GPU Max)
‍

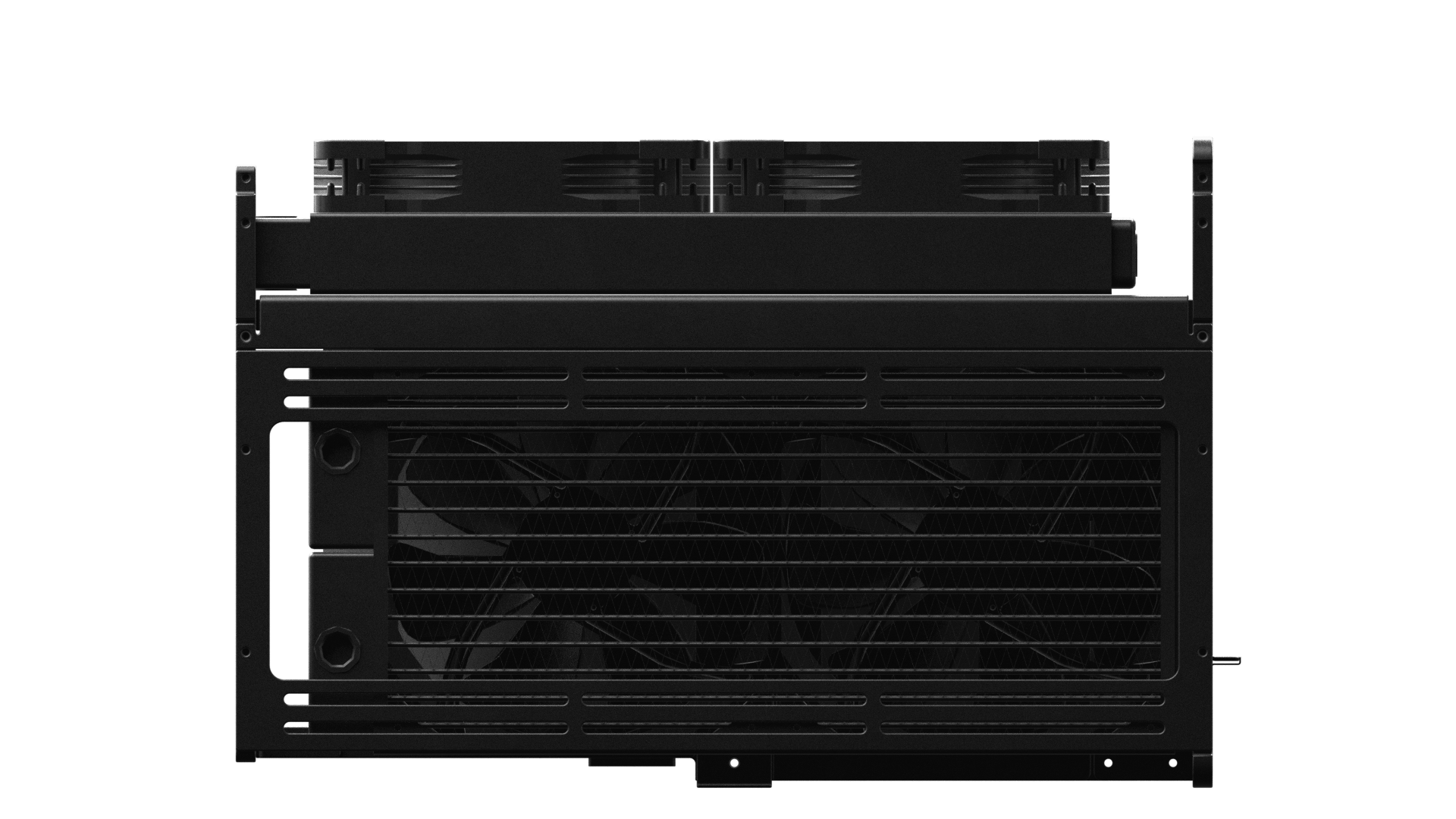

Layout 2

This Layout Combines Outstanding flexibility and Ultimate hardware support. It is a perfect balance of performance and accessibility and will outlast many iterations of your setup. A layout aimed at those who wish to transform their iTX PC into a mini powerhouse, something many enthusiasts have been anticipating for years. It is the vision that shaped the r1 from the beginning and is what nourished our desire to make it a reality.

Motherboard Support

• MINI ITX
• MINI DTX

cPU cooler compatibility

• 65mm max height

gpu compatibility

• 4 Slot (Max Thickness), 3 Slot (Max IO)
• 335mm (Max Length)

With DDC Reservoir and Side Radiator:
• 1 Slot (Max Thickness), 3 Slot (Max IO)
• 305mm Waterblock (Max Waterblock Length)

With D5 Reservoir and Side Radiator:
• 1 Slot (Max Thickness), 3 Slot (Max IO)
• 270m Waterblock (Max Waterblock Length)

psu compatibility

• ATX
• STX
• SFX-L

Reservoir Compatibility

• DDC Reservoir (Only Supports Out ANDHANS DDC Reservoir)
• D5 Reservoir (Only Supports Out ANDHANS D5 Reservoir)

Radiator and Fan Compatibility

• 2 Standard 280mm Radiator
‍

Drive Compatibility

• 4 SSD/2 HDD With SFX PSU
• 2SSD/1HDD With ATX/SFX-L PSU

• 12 SSD/6 HDD (Max) Extra With Brackets.
• 4 SSD/2 HDD Extra Per Additional Bracket.

• +1 Bracket If CPU Cooler Height <= 80MM
• +1 Bracket is GPU Length <= 280MM
• +2 Brackets With No Changes

Design

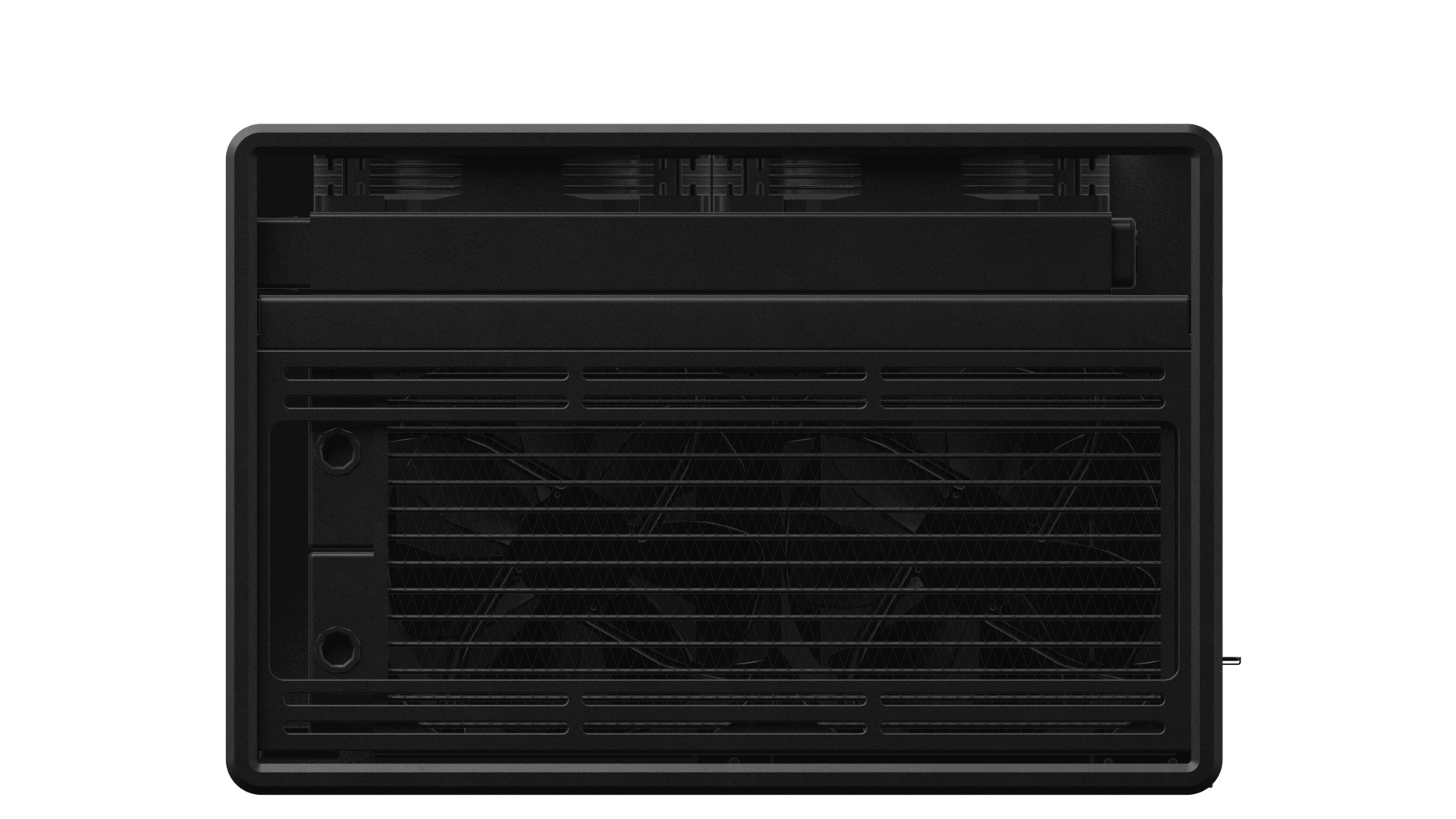

The Side Panels, Which Are Machined with Breathable but Unobtrusive Arrays of systematically arranged Holes, Are Sandwiched Between the Exterior Panels Allowing for Simple and Screwless Access to the Interior. Each Exterior Panel Slides Smoothly onto the exterior Shell with Hidden Gliders on Each Edge. The elegant Curves on the exterior frame are designed to provide a modest hint of character to any setup.

enclosure

front iO

power button

materials

machined sandblasted anodized aluminium + some sheet metal, 2.5mm exterior panels, 1.5mm interior frames. machined front/back frames and exterior rim.

case volume

11.9l

dimensions

(l x w x h) 345mm x 150mm x 230mm

external

(l x w x h) 350mm x 155.6mm x 242mm

enclosure weight

2.0kg

SHIPMENT

Shipment Dimenstions

(L X W X H) 350MM X 155.6MM X 242MM

Shipment weight

3.6KG
